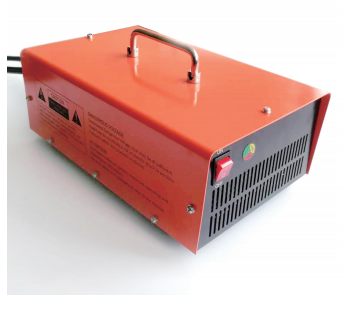

High power car charger, suitable for lead acid battery, lead acid maintenance free battery, lithium battery



Etc; It can be used for electric light truck, sightseeing car, patrol car, dining car, forklift, etc.



Technical parameters:



AC input voltage range: 180-260vac; 45-65Hz



Power factor: ≥ 0.98



Maximum efficiency: 93.0% (full load)



Noise: ≤ 65dB



Protection grade: IP20



Weight: ≤ 9.5kg



Working temperature: - 30 ℃ - + 55 ℃



Storage temperature: - 40 ℃ - + 95 ℃



Can bus control is optional; Three color indicator light can be connected externally; charge



Electric locking (the power train of the vehicle can be locked by the relay during charging



(1). Meet the charging needs of various occasions.



National standard and European standard charging pile communication protocol can be selected



Protection function:



Output over current protection



Output overvoltage protection



Output short circuit protection



Output no-load protection



Output reverse connection protection



Input overvoltage protection



Input undervoltage protection



Over temperature protection of charger



Can communication fault protection



Full automatic shutdown
