1. Technical parameter specification



2. AC input voltage range: 180-260vac, 45-65hz



3. Max input current: 12A@220VAC



4. Max charging voltage: 109.5v for 96V battery bank (30cells 3.2V 100Ah LiFePO4 battery)



5. Output current: 30A



6. Power factor: ≥ 0.98



7. Max efficiency: 93.0% (full load)



8. Noise: ≤ 55dB



9. Water proof: IP67



10. Weight: 4.5kgs



11. Working temperature: - 30 ℃ - + 55 ℃



12. Storage temperature: - 400 ℃ - + 95 ℃



The shell of this series charger adopts integrated die casting structure; The machine adopts glue filling process, which is suitable for liquid rich lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, Ni MH batteries, Ni Cd batteries, etc; It can be used for electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, power, transmission and other battery pack cycle charging or floating charging.

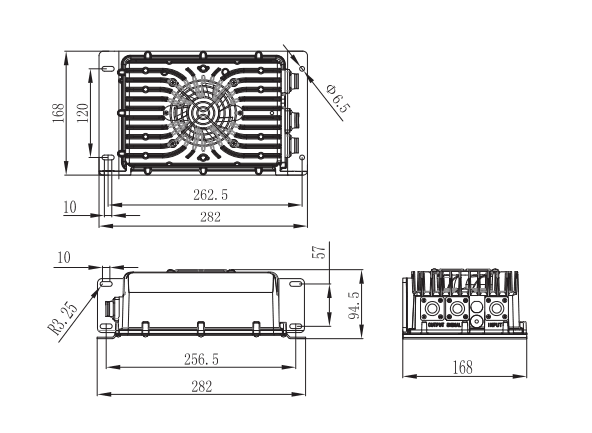

This charger house adopts integrated die-casting structure; the machine uses glue filling technology, which are used for charging flooded/wet batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-hydrogen batteries, nickel-cadmium batteries, etc.; In general, this kind of charger is used in electric cars, electric motorcycle, shopping cart, tour car, patrol car, forklift, communication, power, communication and other battery packs cycle charging or floating charging.



Specification



AC input voltage range: 180-260vac, 45-65hz



Max input current: 12A@220VAC



Max charging voltage: 109.5v for 96V battery bank (30cells 3.2V 100Ah LiFePO4 battery)



Output current: 30A



Power factor: ≥ 0.98



Max efficiency: 93.0% (full load)



Noise: ≤ 55dB



Water proof: IP67



Weight: 4.5kgs



Working temperature: - 30 ℃ - + 55 ℃



Storage temperature: - 400 ℃ - + 95 ℃



Protection function:



Output overcurrent protection



Input overvoltage protection



Output overvoltage protection



Input undervoltage



Output short circuit protection



Charger over temperature protection



Output reverse connection protection



Automatic stop when the battery is full
